Description
Areas of application:
Coatings of paint, lacquer or plastic on steel or iron (Iso/Fe) or layers of copper, brass, zinc, tin and chrome on steel or iron (NF/Fe).

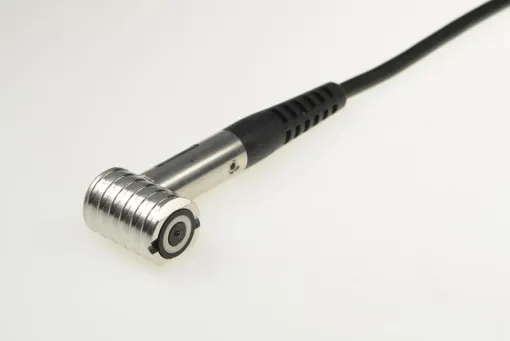

With rugged 10-pin jack for holes 36 mm in diameter and larger. Spring-loaded measuring element with anti-wear coated, exchangeable probe tip.
For characteristics, see technical data sheet.
Cable length: 1.5 m
Measurement range: 0 – 2000 µm (0 – 80 mils) NF/Fe
Price includes set of calibration foils and Fe base. In order to function as a complete measurement system, this probe requires a Fischer measuring instrument.
Can be connected to the following instruments:
All DUALSCOPE® and DELTASCOPE® handheld devices of the FMP series, as well as the desktop instruments FISCHERSCOPE® MMS® PC and FISCHERSCOPE® MMS® PC2 with the F-module PERMASCOPE® (12-pin jack)
For product comparison of Fischer Probes, click here to visit the brochure.
