ECHO Ultrasonics Echo 6 HT Couplant

Price range: USD $160.74 through USD $723.00

Echo 6 HT is a low-cost phenyl/methyl modified silicone based high-temperature, slow-drying, fluid ultrasonic couplant replacing plant based oils (peanut and canola) and mineral oils. Echo 6HT has no residue and is less subject to under insulation cracking (which leads to a lower auto-ignition temperature).

Description

Echo 6 HT won’t form a film or varnish nor will it gum up bearings or equipment.

Echo 6HT serves as a long-term lubricant for mechanical AUT equipment.

Echo 6HT maintains a low, stable viscosity across a broad operating range.

Echo 6HT provides excellent corrosion inhibition on ferrous metals.

Echo 6HT is compatible with all metals and most plastics.

Operating Range -40° to 675°F (-40° to 357°C)
Viscosity 90 to 110 cSt, Fluid
Auto-ignition Temperature 789° F (421° C)
Sound Velocity 1015 m/second
Halogens and Sulfur Less than 50 ppm
Specific Gravity 0.97
Weight/Gallon 8.91 pounds / 4.04 kg net
Packaging

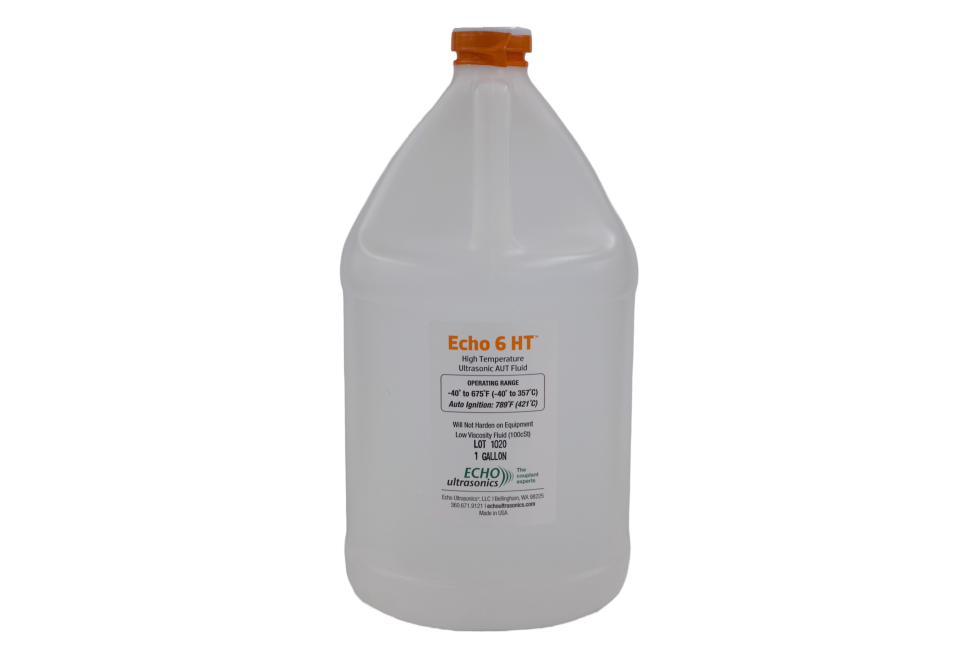

  • 1 gal / 3.8 liter rigid container

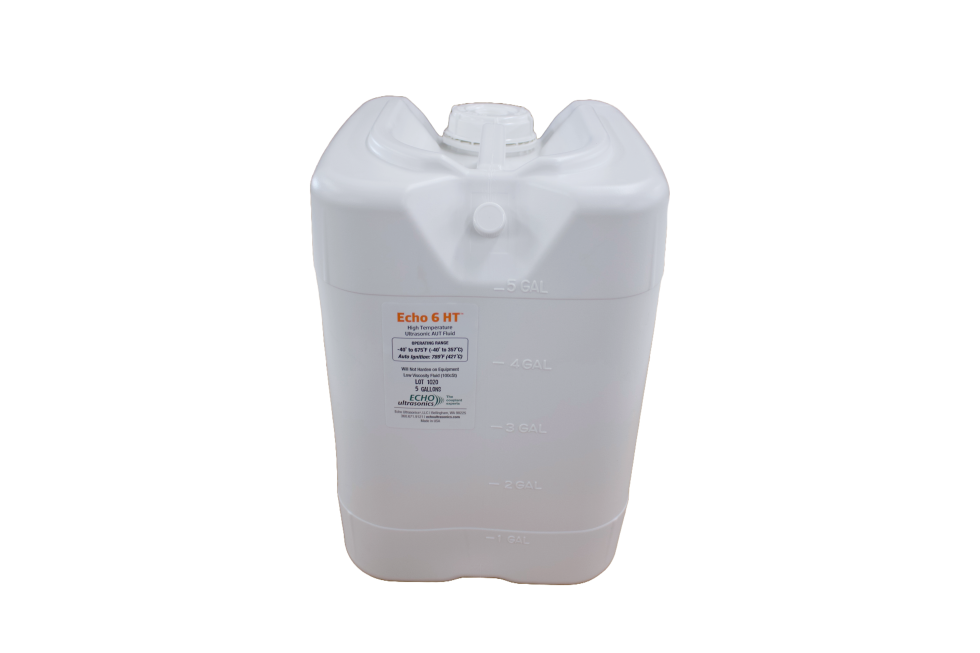

  • 5 gal / 18.9 liter rigid container
  • 55 gal / 208 liter drum

For more information, click here to view the manufacturers product data sheet.

Additional information

Weight N/A
Dimensions N/A
UOM

1 gal, 5 gal
