Description

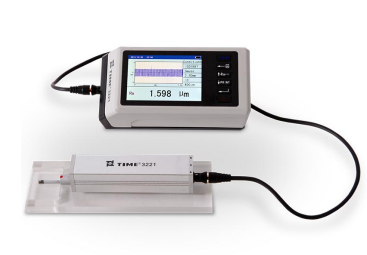

TIME 3221 is designed for use in the mechanical manufacturing industry, particularly in metal processing applications. The primary function of a roughness tester is to measure the surface roughness of machined components. The portable roughness tester is especially effective for evaluating hard surfaces. It is commonly used in industries such as automotive parts manufacturing and general mechanical component production. Roughness testers are essential tools in any manufacturing environment where maintaining and verifying the surface quality of parts is critical.
Standard Delivery:
- TIME 3221 main unit
- External pickup stylus transducer being with connection cable
- Probe driver and fixing parts
- Calibration certificate
- Roughness standard
- Software and communication cable
- Portable magnetic base with 360 deg fixture
Features:
- Multi-parameter measuring: Ra、Rp、Rv、Rt、Rz、Rq、Rsk、Rku、Rc、RPc、RSm、Rmr(c)、tp、
Rmr、Rpm、Rz1max、RzJIS、Rmax、Htp、Rδc、RΔq、RΔa、 Pa、Pp、Pv、Pt、Pz、Pq、Psk、Pku、
Pc、PSm、Pmr(c)、Pmr、Pz1max、PzJIS、Pδc、PΔq、Rk、Rpk、Rvk、Mr1、Mr2、A1、A2 - Touch screen / TIFT coloured LED display
- High accuracy inductance pickup
- Filtering methods of 2RC, GAUSS
- Conforms to standards of ISO1997, ANSI and JIS2001
- Display showing all parameters values and graphs after measurement
- Can be connected to PC or mini printer to print all parameters and graphs
- Both USB port and RS232 interface
- Automatic switch off
For more information, click here to view the manufacturers specification sheet.
