Description
The measuring of several thousand hardness values is done in short time and the summary of the values in a colored graph shows very well the structure in weldseans or the area from the base material to the hardened area.

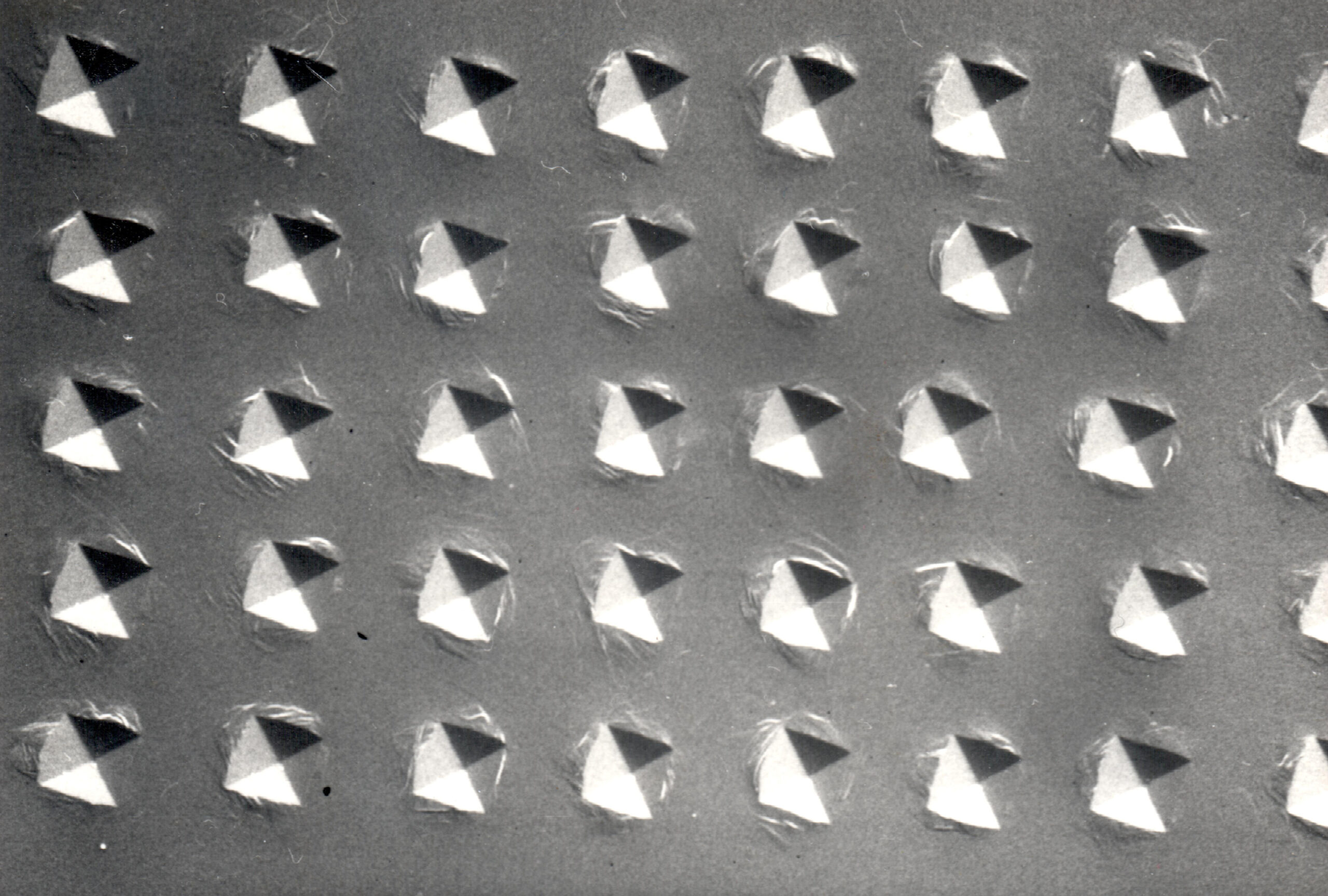

The testload for this measurement can be adjusted to the material and the desired distance of the test indentation. The indenter is a vickers diamond. The for many years well established UCI measuring method ensures a precise and automated determination of the hardness values.
With the integrated function, the results can be shown as chart, histogram, linescan or colored hardness progress and printed for documentation. The graphics can be used by other programs as Bitmap.
Features
- Fully automated hardness testing
- Hardness distribution on surfaces
- Very quick through UCI measurement procedure
- Testing according to DIN 50159 and ASTM A1038
- HV 0.1 – HV 2
- CHD-. SHD-. NCD- and In-Line-Measurements
- Automated recording of different surfaces and lines
- Testing of up to 20 Specimen with only one automated procedure
Delivery Includes

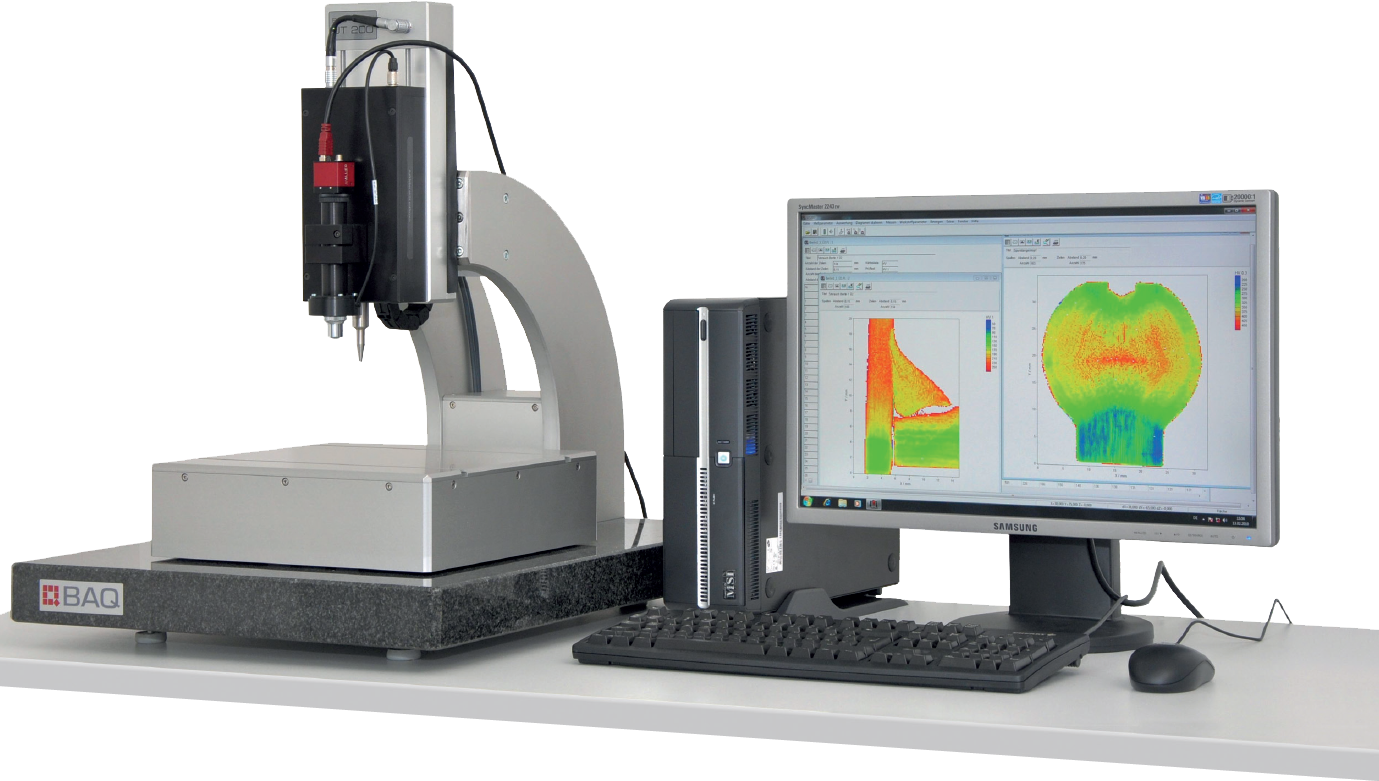

- Hardness Scanner ready-to-use with high-performance PC
- Software
- Manual
Technical Data
| Test load scale | HV 0,1 to HV 2 |
| Hardness scales | HV, HRC, HB and Tensile strength |
| Sample table | 330 x 330 mm |
| Travel range (X, Y, Z) | 140 x 140 x 90 mm |
| Repeat accuracy | ± 0,01 mm |
| Maximum specimen height | 105 mm |
| Minimal specimen height | 35 mm in HV 2 |
| Optic | Centering microscope with camera |
| Lighting | Adjustable LED-Ring light |
