Description

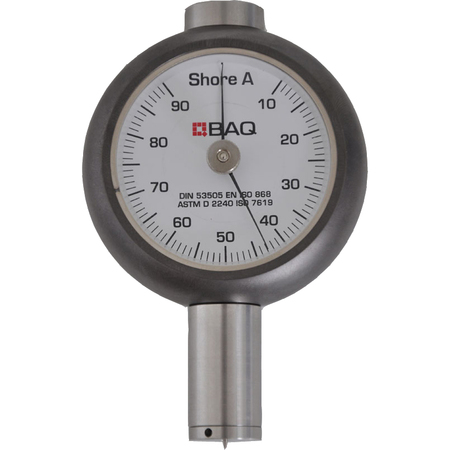

Due to its anodized aluminium housing and the solid watch glass, this durometer is extremely robust and suitable for use in production lines.
Because of the integrated drag indicator, the maximum value can be read easily. The measurements can be made in any direction.

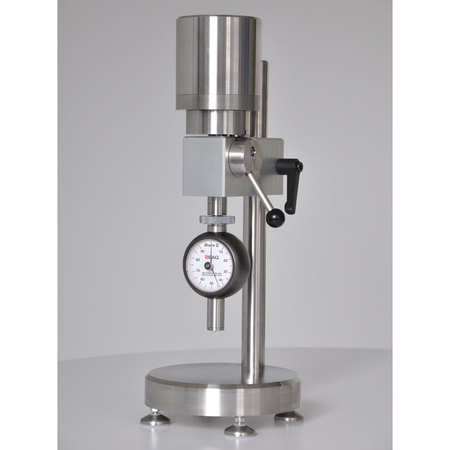

To simplifiy the handling the analog Shore Durometer can be mounted into a mesuring stand, whereby an accurate vertical testing can be ensured.
Features
- Analog instrument
- Maximum value indicated by drag indicator
- Watch glass resistant to scratches and discoloration
- Sturdy housing made of anodized aluminum
- Usable in any direction
- Corresponds to DIN 53505 and ASTM 2240 standards
- Measuring stand as an option
Delivery Includes
- Analog durometer type A or D

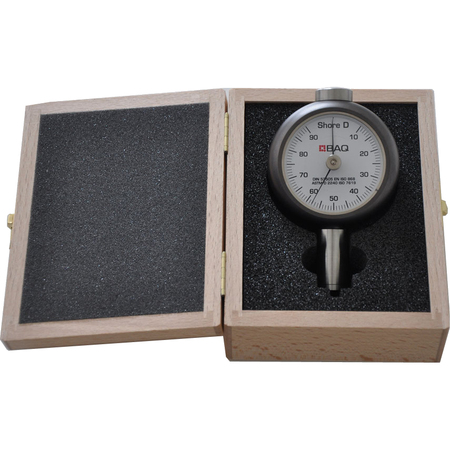

- Wooden storing box
- Calibration certificate
- Operating information
Technical Data
| Measuring method | Shore A & D according to DIN 53505 and ASTM D 2240 |
| Test materials | Shore A: elastomer, soft rubber, caoutchouc |
| Shore D: hard rubber, rigid thermoplastics, hard plastics | |
| Sample requirements | 6 mm minimum thickness (or max. 3 layers of 2 mm thickness lying on each other) |
| Measuring range | 10 – 90 |
| Scale | 1 Shore |
| Maximum value display | Through drag indicator |
| Indicator’s diameter | 70 mm |
| Contact surface | Ø 18 mm |
| Length of shaft | 32 mm |
| Weight | 285 g |
