BAQ RZ-X Analogue Rockwell-Clamps
BAQ RZ-X Analogue Rockwell-Clamps - Image 2

BAQ RZ-X Analogue Rockwell-Clamps

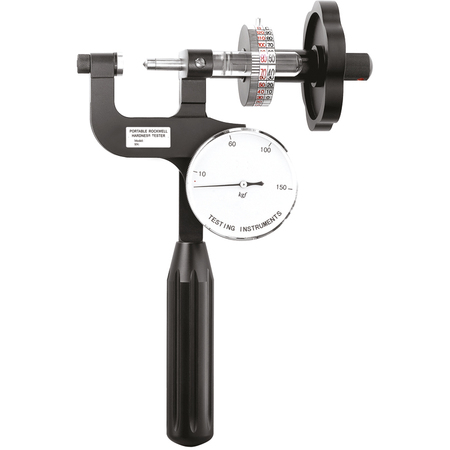

With the Rockwell-Clamps free hand measurings or under support of the table stand are possible. This affects, that long and heavy speciment can be measured without cutting them in pieces. The range of application for the material is wide spread. Soft metals, very hard alloys, aluminium alloys, copper, copper alloys, soft steel, stainless steel, hardened steel and carbides can be measured. With the different supporters, a lot of flat and cylindrical surfaces as well as inside and outsidse of pipes can be measured too.

Categories: , Tags: , , ,

Description

Mobile hardness testing after Rockwell and Super-Rockwell

The Rockwell-Clamps are available in two versions (RZ-1 & RZ-2) with different measurements and each available for measuring after Rockwell or Super-Rockwell.

Features

  • Precision complies with ISO 6508 and ASTM E18
  • Easy handling through light weight

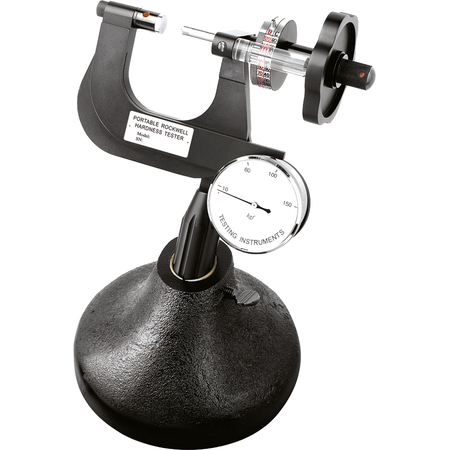

  • Can be used as table device with stand or mobile tester

Technical Data

Initial load 10 kg
Test load 60 kg, 100 kg oder 150 kg
Resolution 0,5 HRC
Precision ≤1,5 HRC
Conversion HV, HB or tensile strength (table)
Opening size RZ-1: 25×25 mm
RZ-2: 50×50 mm
Weight RZ-1: 0,8 kg
RZ-2: 1,2 kg

For more information, click here for the manufacturers technical specification sheet.
