Description
The hardness testing machines are engineered to support production processes and enable 100% inspection of high-volume components. Their modern design allows for seamless integration into existing production lines.

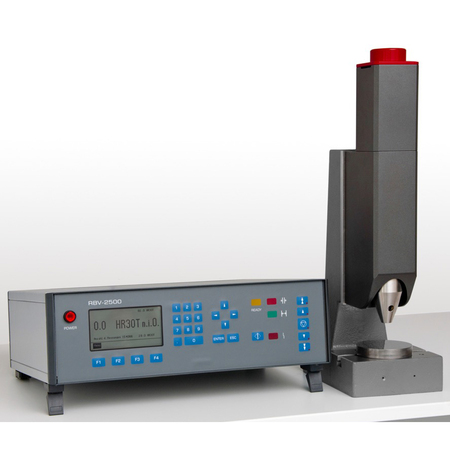

Each system consists of a hardness testing module and a separate control unit, which can be conveniently installed within an electrical cabinet.
Features
- Fully automated hardness testing
- Rockwell, Super-Rockwell and Brinell (HBT)
- According to DIN EN ISO 6508 and ASTM E18
- Control over SPS (incl. GOOD/BAD rating)
- Implementable in production plants
- Very flexible mounting options
Technical Data
| Hardness scale | Rockwell and Super-Rockwell-Procedure, others on request |
| Test load (Rockwell) | Chooseable from 15-150 kg |
| Hardness resolution | 0,1 HRC |
| Lifting | 20 mm |
| Test cycle | Approx. 20 Sec. |
| Power supply | 85-264 V / AC |
| Dimensions | 75 mm x 120 mm x 420 mm |
| Installation | Tapped holes on the back side |
| Control unit | 19″-Case, 3 HE |
| Connection to SPS | Switch-output, (potential-free) |
| Interface | USB, RS232, Ethernet |
| Display | Color-LCD |
