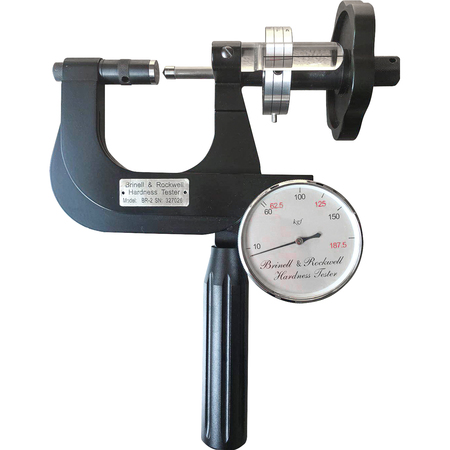

BAQ Rockwell-Brinell-Clamps RBZ-2

With the Rockwell-Clamps free hand measurings or under support of the table stand are possible. This affects, that long and heavy speciment can be measured without cutting them in pieces. The range of application for the material is wide spread. Soft metals, very hard alloys, aluminium alloys, copper, copper alloys, soft steel, stainless steel, hardened steel and carbides can be measured. With the different supporters, a lot of flat and cylindrical surfaces as well as inside and outsidse of pipes can be measured too.

Description

Features

  • Precision complies with ISO 6506/6508 and ASTM E10/E18
  • Easy handling through light weight

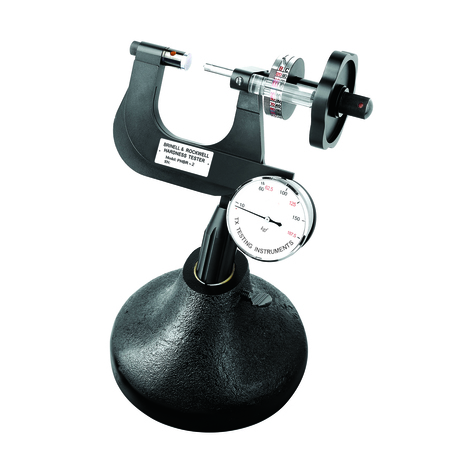

  • Can be used as table device with stand or mobile tester

Delivery Scope

  • Diamond indenter
  • 1/16″ Ball indenter
  • Ball indenter 2.5mm
  • Ball indenter 5 mm
  • 40x Measuring microscope
  • Manual
  • Hardness test blocks
  • Plane supporter
  • V type supporter
  • Case

Technical Data

Initial load (Rockwell) 10 kg
Test load (Rockwell) 60 kg, 100 kg or 150 kg
Resolution 0,5 HRC
Test load (Brinell) 62.5 kg, 125 kg, 187.5 kg
Ball diameter(Brinell) 2,5 mm and 5 mm
Precision according to ISO6508 / 6506 and ASTM E10 / E18
Opening size 50x50mm
Weight 1.2 kg
