Description

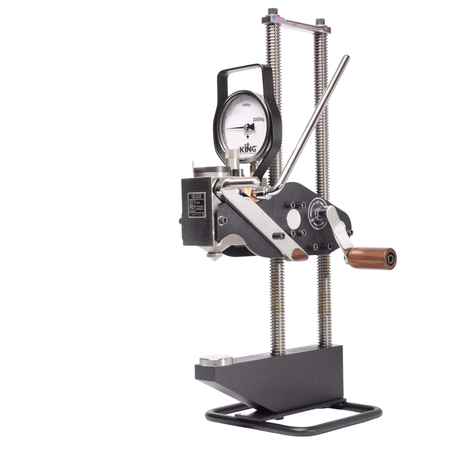

The King Tester applies the same principle as a bench type Brinell hardness tester. By a hydraulic principle with hand-operation the 3000kg test force is applied to the sample using a 10mm carbide ball indenter. The indentation results reflect the hardness of the material. The tester has multiple testing forces and indenters so that the King Tester can test all kinds of material and its testing range is 16-650 HBW.
Features
- Built to last – King Testers have been in operation for over 60 years
- Ease of use
- Can be used in any position
- Stainless steel test head – resists rust and corrosion
- Durability – constructed with alloy steel threaded posts
Delivery Includes
- King Brinell hardness tester
- Indenter with 10mm ball
- Flat anvil
- V-Anvil
- Manual
- Factory certificate
Technical Data
| Test load: | 500 – 3000 kg |
| Measuring Range: | 16-650 HBW |
| Max. sample height: | approx. 35 cm (up to 50 cm optional) |
| Max. sample depth: | approx. 10 cm (up to 15 cm optional) |
| Accuracy: | according ISO 6506 and ASTM E110 |
| Weight: | approx. 15 kg |
For more information, click here to refer to the manufacturers technical specification sheet.
