Description

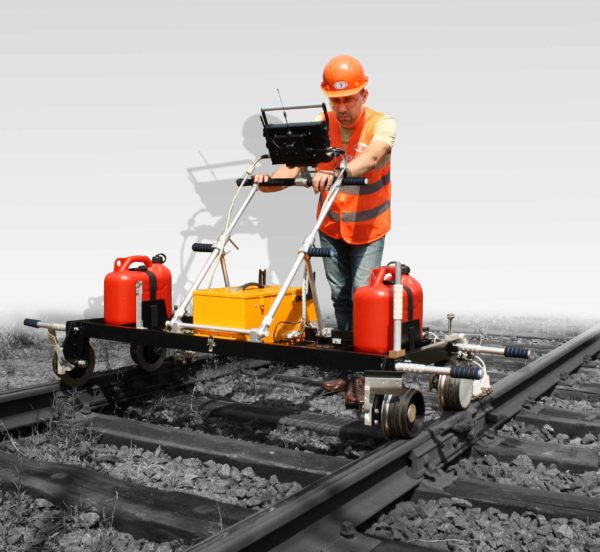

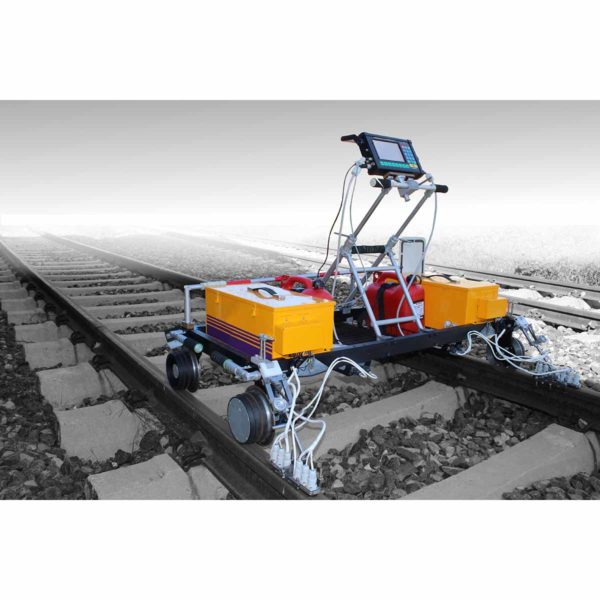

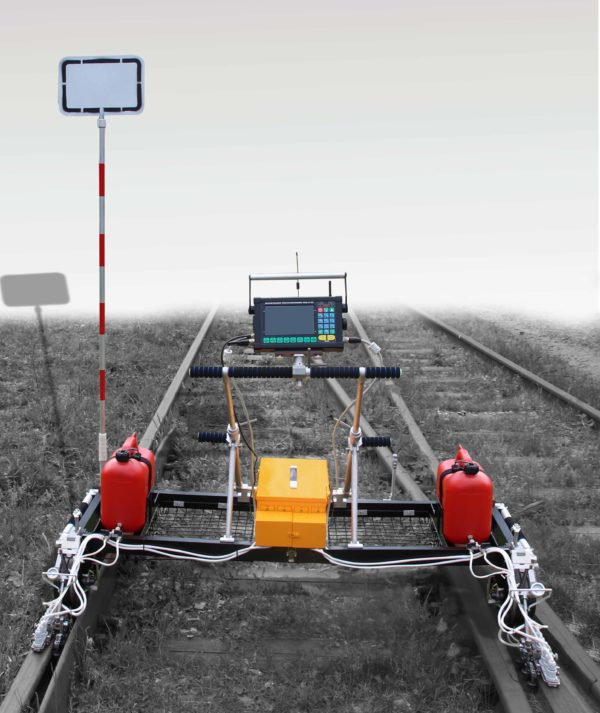

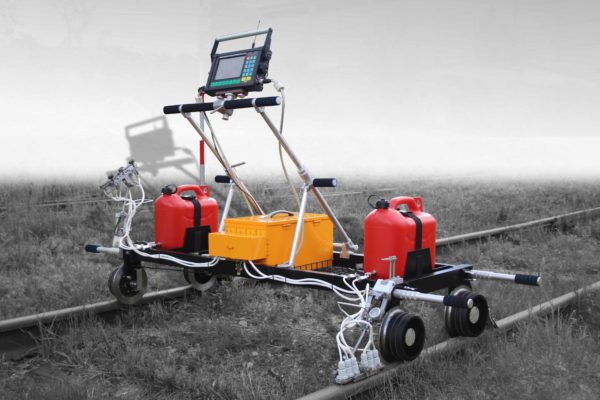

UDS2-73 rail flaw detector is intended for continuous inspection of rails and railway switches at a speed of 4 km/h and flaw detection in rail cross section, excluding rail base blades, as well for manual confirmatory testing of individual rail cross sections and welded joints. The flaw detector offers recording of test results both in a database format (B-Scan) and as individual test reports linked to path and GPS coordinates.
Advantages
- Complete scanning of the rail (excluding rail base blades) due to the flaw detector multi-channeling
- Built-in standard settings for channel operation
- Determining the distance and speed during continuous testing
- Real-time test result display in B-Scan mode (for 4 channels)
- Scanning and saving the information every other millimeter of traveled distance from all channels
- Test results recorded at different sensitivity levels
- Registration of all test results and advanced capabilities of data analysis
- Standard scanning scheme applied enables detecting all types of fatal defects, appearing during the operation of a rail track
Click to view the OKOndt Group UDS2-73 Ultrasonic Double Rail Flaw Detector Brochure
