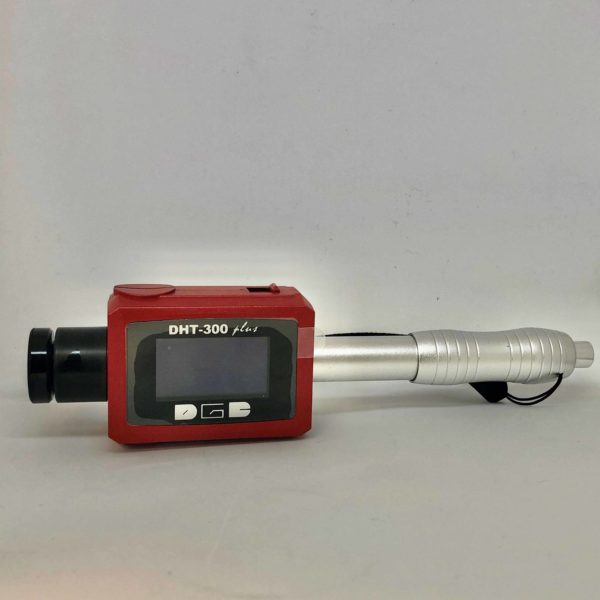

DHT 300 Plus D Leeb Rebound Hardness Tester

USD $52.07USD $1,814.97

The DHT-300 Plus D hardness tester uses state-of-the-art micro-electronic technology.  It incorporates a hardness impact probe, microprocessor and data display in a single, compact unit.  This uniquely designed, pocket-size instrument comes with carrying case.

Replacement charger and battery also available.

Clear
SKU: N/A Category: Tags: , ,

Description

The main features of DHT-300 includes data display with statistic, enlarged storage capacity, USB interface for both recharging and data transfer to your PC or printer, OLED display for use in dark areas, and more.

The DHT-300 Plus conforms to ASTM A956 and provides exceptional reliability for a wide measuring range, and is capable of automatically converting and displaying measurements into Brinell, Rockwell, Leeb, Vickers and Shore hardness values.

Typical Applications

  • Testing of large and/or heavy components, including installed machine parts and components
  • Testing of products during manufacture, especially of mass produced components
  • Testing of items and materials in warehouses or stores for material identification
  • Testing of materials and components located in difficult to access, or confined spaces

Technical Data

  • Measuring accuracy: +/- 0.5%
  • Impact device: Model D or DL
  • OLED display
  • Hardness measurement values include HRC, HRB, HRA, HB, HV, HS and HLD
  • Automatic calculation of average and mean test values
  • Storage capacity: 1250
  • USB 2.0 interface
  • Impact direction: any angle
  • Impact energy: 8 ft-lbs (11Nmm)
  • Test tip: Tungsten Carbide
  • Dimensions: 158 x 41 x 26 mm
  • Weight: 120g
  • Operating temperature: 0°C – 50°C

Standard Package

  • Processor integrated with impact device D
  • Calibration certificate
  • Standard test block
  • Software
  • USB cord
  • Battery charger
  • Support ring
  • Cleaning brush
  • Carrying case

Additional information

Weight N/A
Dimensions N/A
Components

Hardness Tester with Case, Replacement Battery, Replacement Charger with USB Cable
