JME 6:CR2 Pipeline Crawler

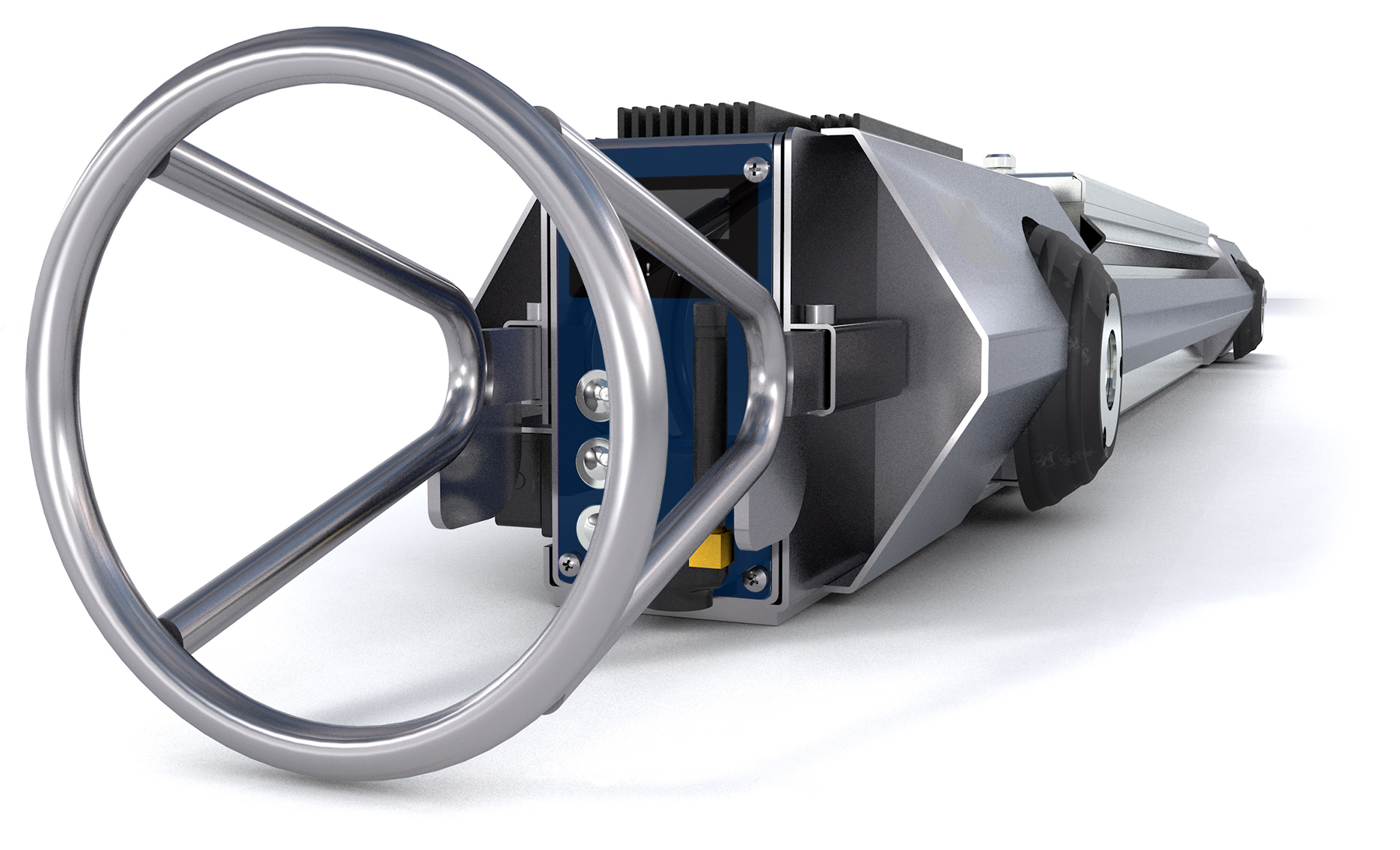

The JME 6:CR2 Pipeline Crawler is designed specifically for the non-destructive testing of circumferential butt welds in tubular installations such as oil and gas transmission pipelines.

Category: Tags: , , ,

Description

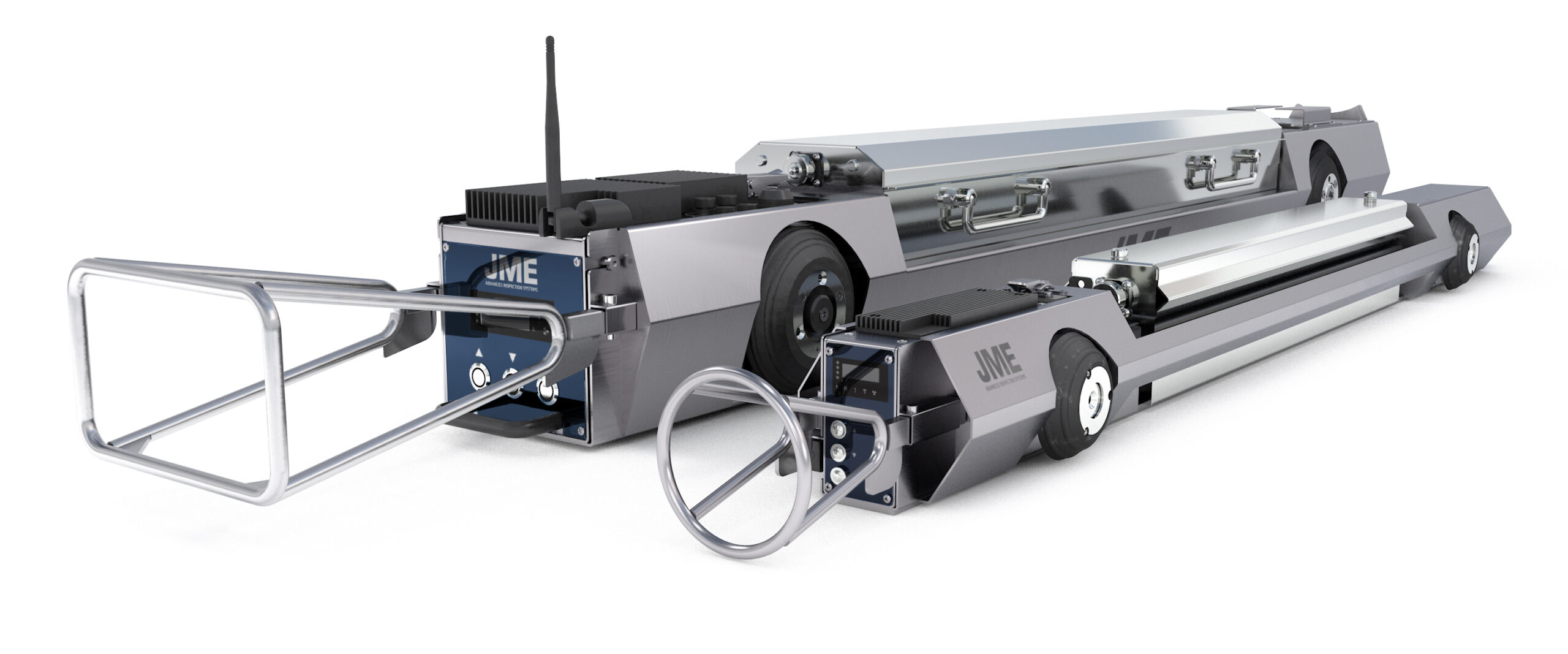

This 2nd Generation CR2 range is considered the world’s most technologically advanced NDT crawler system. The JME 6:CR2 Pipeline Crawler is extremely compact and lightweight, deployable in an internal diameter (ID) range between 5.4” (139mm) and a maximum of 18” (457mm). Coupled with x-ray generators from JME or ICM, this system can produce internal panoramic single-wall-single-image (SWSI) radiographs of very high quality.

The crawler can be commanded using JME’s magnetic control system (Magnetope), or a conventional isotope control system, additional features are accessible using our brand new CR2 remote handset.

Remote Handset Features

  • Complete set-up of Crawler and X-ray tube parameters
  • Real-Time status of Crawler while operating in the pipe, includes:
    • X-Ray Tube kV / mA
    • Exposure Time
    • Temperature
    • Battery Levels
  • Remote operation of X-Ray tube for increased safety
  • Ability to enable/disable key features Including:
    • Anti-Runaway
    • Water Sensors
    • End of Pipe Sensors
    • Control System Set-Up
    • X-Ray/Gamma Control

For more information see manufacturer’s datasheet: Datasheet – JME 6CR2 Pipeline Crawler
